200TON Injection Molding Machine

Product Categories
Zhangjiagang Sky Machine Co.,Ltd
Contact Now

200TON Injection Molding Machine

Place of Origin : Jiangsu Province,China

Brand Name : Sky Machine

Certification : CE

Model Number : SZ-2000A

MOQ : 1set

Price : 28000USD/set

Packaging Details : Seaworthy Exportation package

Delivery Time : 30days

Payment Terms : T/T;LC;DP,WESTUNION;PAYPAL

Supply Ability : 300sets/year

Trading Item : EXW;FOB;CFR;CIF

HS code : 84771010

Website : www.sky-machine.com

Clamping Force : 2000KN

Type : Preform Injection

Plastic Type : Thermoplastic

Style : Horizontal

Automatic : Yes

Contact Now

200TON Injection Molding Machine

Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).

Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.

Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.

Technical Parameter:

Item Unit Data
Max. clamping force KN 2000
Max. opening distance mm 500
Space between tie bars mm 505×505
Mold height(min-max) mm 190-530
Max. daylight mm 1030
Ejector force KN 53.1
Ejector stroke mm 125
Ejector quantity 5
Screw diameter mm 50 55 60
Screw L/D ratio L/D 23.1 21 19.3
Theoretical shot volume cm3 491 594 707
Plasticizing weight(PS) g 447 540 643
Injection pressure Mpa 215 178 149
Theoretical injection rate(PS) g 145 175 208
Plasticizing capacity(PS) g/s 22.5 28.7 35.4
Screw torque N.m 1510
Max. screw rotate speed r/min 170
Injection stroke mm 250
Pump motor power KW 18.5
Pump pressure Mpa 16
Heating power KW 16.6
Heating zone 4
Size(L×W×H) m 5.9×1.5×2.0
Net weight t 6.8
Oil Tank Capacity 420
International designation 2000-1060


Quality 200TON Injection Molding Machine wholesale

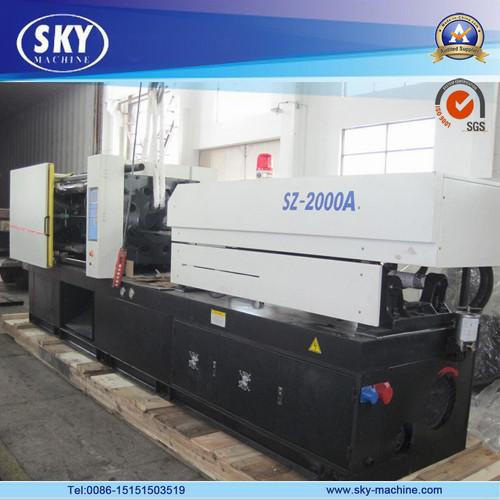

200TON Injection Molding Machine Images
